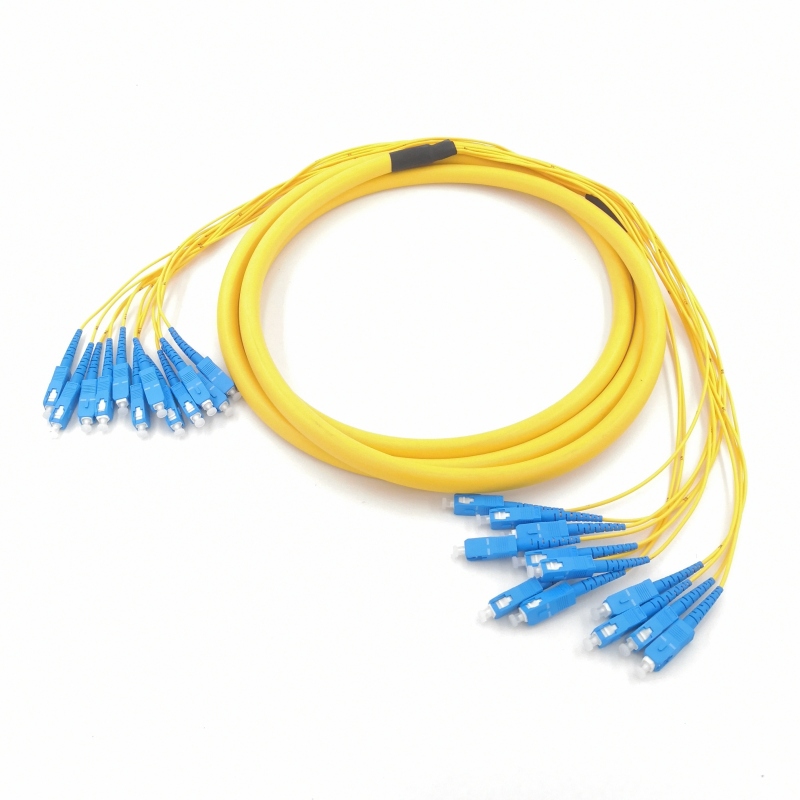

Application
Telecommunication networks
FTTH-Fiber to the home
CATV-Cable television network
Data center
Connections between equipment, patch panels and boxes
Feature
In accordance with international standards
Good tensile strength with individual aramid yarn strength member
Low insertion loss with precise zirconia ferrule
Good repeatability
Fully custom-made with options on connectors, fiber mode and count, cable color and length
Technical Specification
|
Connector insertion Loss |
¡Ü0.3dB |
|
Connector Return Loss |
¡Ý50dB (UPC) ¡Ý60dB (APC) ¡Ý30dB (MM) |
|
Connector Durability |
1000 Times |
|
Wavelength |
850/1300nm, 1310/1550nm |
|
Branch Cable |
2.0mm Simplex Cable |
|
Operating Temperature |
-10~+70¡æ (14~158¨H) |
|

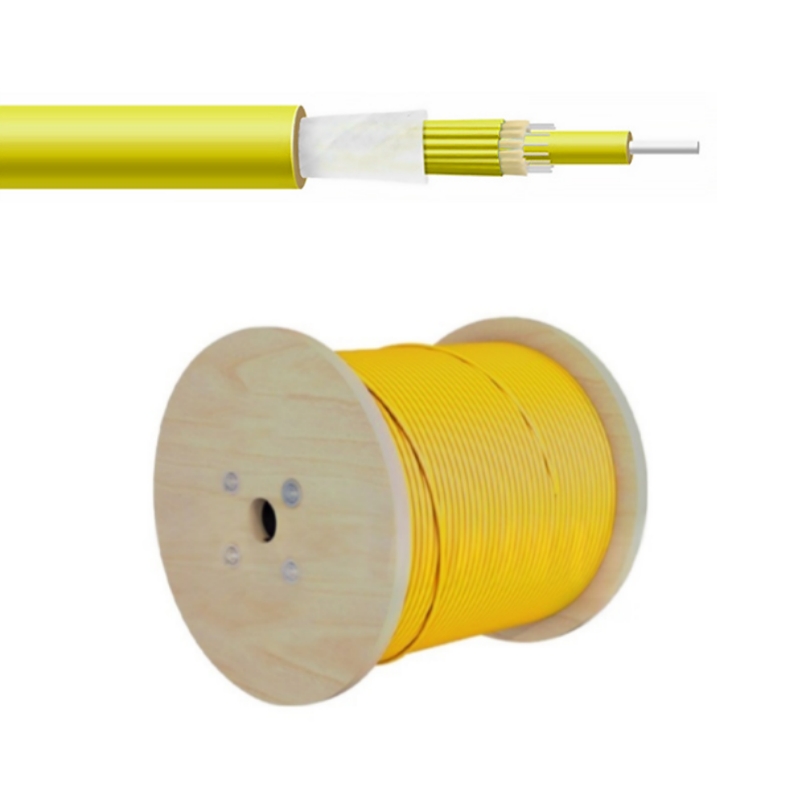

Trunk Cable |
|||||
|
Fiber Count |
4 Fibers |
6 Fibers |
8 Fibers |
12 Fibers |
24 Fibers |
|
Diameter |
7.0mm |
8.0mm |
9.0mm |
12.5mm |
15.5mm |
|
Max Tension Long/Short |
200N 400N |
200N 400N |
200N 400N |
400N 800N |
400N 800N |
|
Bending Radius Static/Dynamic |
10D 20D |
10D 20D |
10D 20D |
10D 20D |
10D 20D |
Ordering Information
|
SCU |
SCU |
S2 |
12 |
YEL |
v |
3 |
|||||||
|
Connector A |
Connector B |
Fiber Mode |
Capacity |
Cable Color |
Outer Jacket |
Cable Length |
|||||||
|
SC/UPC SC/APC LC/UPC LC/APC ST/UPC ST/APC FC/UPC FC/APC E2000/UPC E2000/APC |
SCU SCA LCU LCA STU STA FCU FCA E2U E2A |
SC/UPC SC/APC LC/UPC LC/APC ST/UPC ST/APC FC/UPC FC/APC E2000/UPC E2000/APC |
SCU SCA LCU LCA STU STA FCU FCA E2U E2A |
G652D G657A1 G657A2 G657B3 OM1 OM2 OM3 OM4 OM5 |
S2 A1 A2 B3 M1 M2 M3 M4 M5 |
4 FO 6 FO 8 FO 12 FO 24 FO |
4 6 8 12 24 |
Yellow Orange Aqua Purple Green Blue White |
YEL ORN AQU PRL GRN BLU WHT |
PVC LSZH |
V H |
3m 5m 10m 20m 30m 50m 100m |
3 5 10 20 30 50 100 |
